Krix MX-10 是澳洲凯瑞斯的幕后音障墙系统，属于私人影院系列。
Designed for 私人影院s with an 透声 screen, the MX-10 is a superb choice for those seeking an involving cinema experience with crystal clear intelligibility, large dynamic range and powerful bass.
Designed for medium size dedicated cinema rooms, the MX-10 presents the next level of modular 家庭影院 performance, housing the same Krix 波导 and mid-bass driver of its bigger brother, the MX-20.

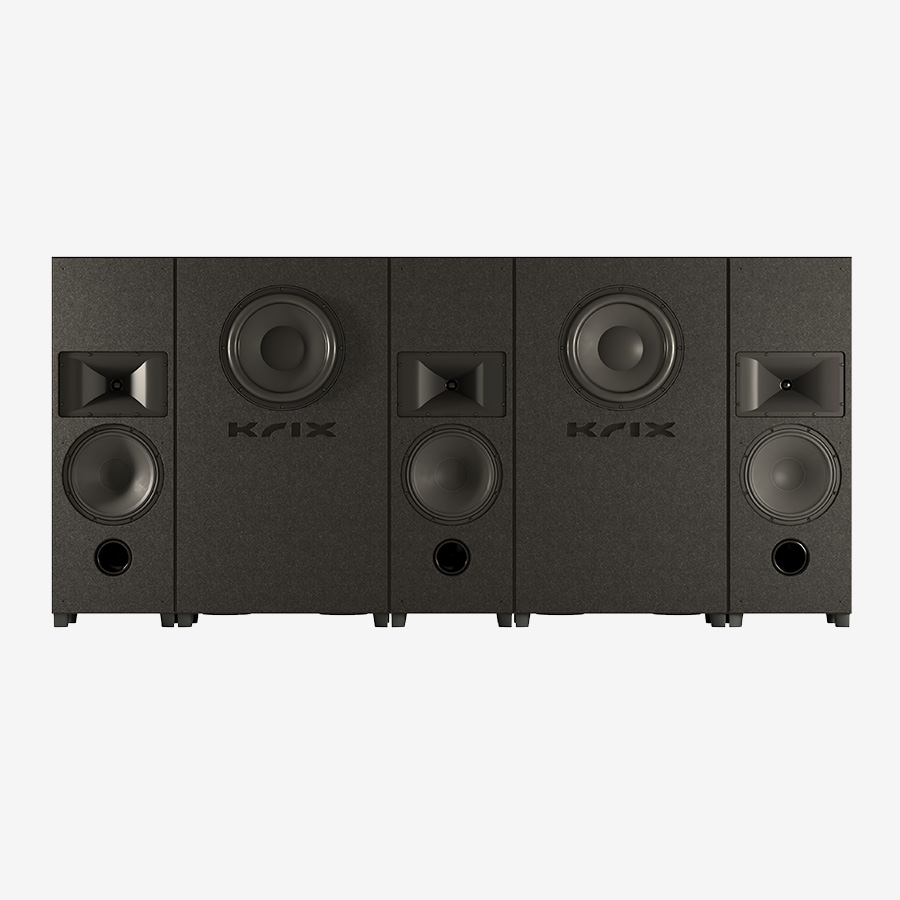

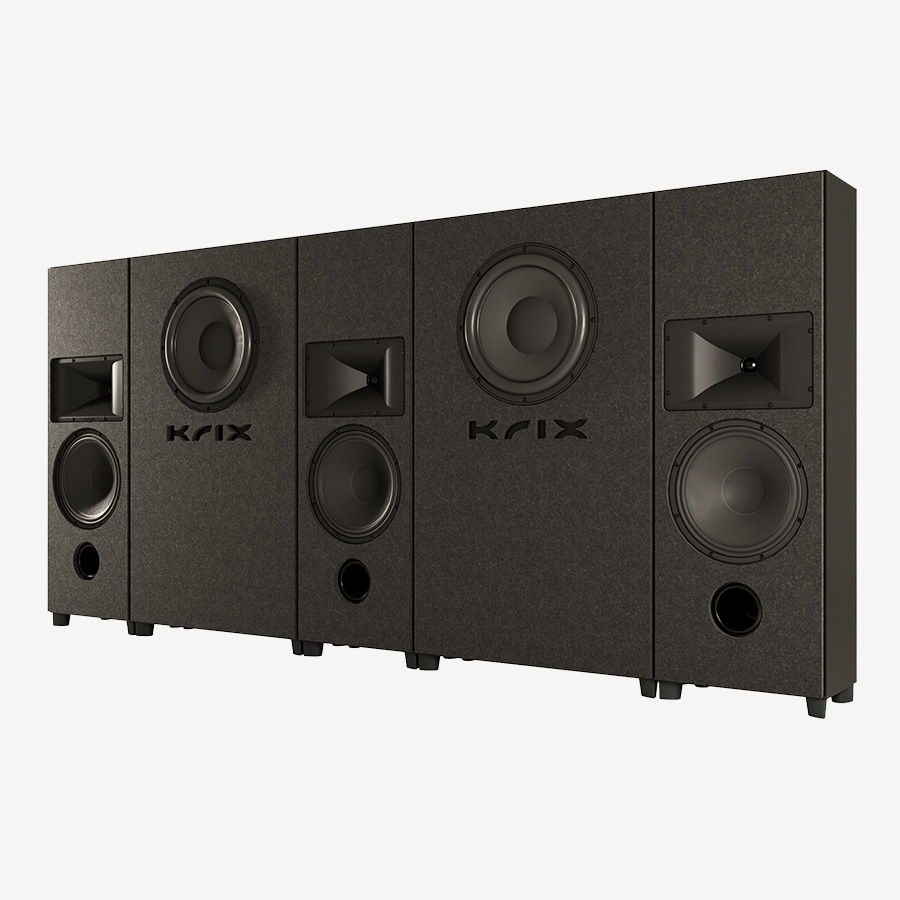

The MX-10 comprises of five modules, all of which are the same height and a slim depth of just 205mm for simple installation into a wall cavity.
The front baffle of each module is covered with an acoustic absorbent material to absorb any sound reflecting off the back of the screen or the room itself.
资料来自 Krix 官网。澳洲设计制造。
品牌：Krix / 凯瑞斯 澳洲制造
型号：MX-10
系列：私人影院系列
SYSTEM RECOMMENDATIONS：Minimum screen size 16:9
95″ (2103mm x 1183mm)：Minimum screen size 21:9
：LCR SPEAKER MODULES
频响：40Hz-20kHz in room response
承受功率：100 – 500 Watts RMS recommended amplifier power
灵敏度：97dB for 2.83 volts at 1 metre
阻抗：8 Ohms
单元结构：2-way
箱体形式：Bass reflex, front vented
低频单元：Single 255mm (10”) paper cone driver. 50mm (2”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion
高频单元：26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide
接线端子：Nickel plated spring terminals featuring a 5mm hole to accept up to 10AWG cable
尺寸：940mm high x 315mm wide x 205mm deep (2040mm wide including subwoofer modules)
重量：15kg each
：SUBWOOFER MODULES
频响：25Hz-200Hz in room response
承受功率：200 – 500* Watts RMS recommended amplifier power
Recommended processing：High pass filter: 30Hz 24dB / Octave Butterworth
